Build Kit 1.0

Installation

Compatibility

Maya	2019	2020	2022
	✓	✓	✓

How to install

1. Extract the RS_Assets folder from the RS_Assets.zip

2. Extract RS_Build_Kit.pyc either from RS_Build_Kit_M2020_and_below.zip or RS_Build_Kit_M2022.zip (depending on your Maya Version)

3. Copy RS_Build_Kit.pyc or RS_Build_Kit.py (Studio Version) and the RS_Assets folder to:

   Attention

   If an RS_Assets folder already exists in the location below, please copy the RS_Build_Kit folder (from inside the extracted RS_Assets folder) and paste it into the RS_Assets folder in the location below.

   WindowsLinuxMac

   \Users\USERNAME\Documents\maya\MAYAVERSION\prefs\scripts


   $HOME/maya/MAYAVERSION/prefs/scripts


   $HOME/Library/Preferences/Autodesk/maya/MAYAVERSION/prefs/scripts


4. Launch / Restart Maya

5. In Maya, open a Python Tab in the Script Editor and execute :

   Attention

   Please make sure that there are no Space characters in front of each code line.

   Maya 2020 & belowMaya 2022

   import RS_Build_Kit
   reload(RS_Build_Kit)
   RS_Build_Kit.MainClass_BuildKit.show_buKi_dialog()


   from importlib import reload
   import RS_Build_Kit
   reload(RS_Build_Kit)
   RS_Build_Kit.MainClass_BuildKit.show_buKi_dialog()


   Maintain settings during a Maya instance

   The code above will load a new instance of the tool every time it is executed. To maintain the settings during a Maya session, even if the tool is closed, use the code below:

   import RS_Build_Kit
   RS_Build_Kit.MainClass_BuildKit.show_buKi_dialog()


Environment Variables

1. To set and use a custom folder location, please open the Maya.env file.

   The Maya.env file is located here

   WindowsLinuxMac

   \Users\USERNAME\Documents\maya\MAYAVERSION


   $HOME/maya/MAYAVERSION


   $HOME/Library/Preferences/Autodesk/maya/MAYAVERSION


2. Add the following lines to the Maya.env file:

   MAYA_SCRIPT_PATH = path\to\your\custom\script\folder
   PYTHONPATH = path\to\your\custom\script\folder
   RS_TOOLS_PATH = path\to\your\custom\script\folder


   Attention

   1. Replace path\to\your\custom\script\folder with the actual path to your scripts.
   2. Make sure there is no forward slash (/) or backward slash (\) at the end of the path.

Interface Basics

Tool Menu

  Mesh / Selection / Layout tools

  Import / Export tools

  About / Links / Shortcuts

Tool Settings

Indicator

A blue line underneath an icon indicates that optional tool settings are available.

How to open?

Open the settings with a RMB ² click.

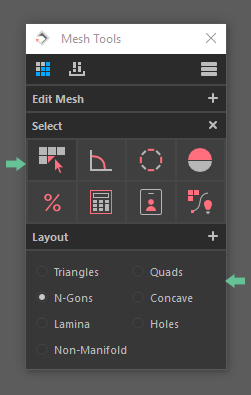

Position & What settings are open?

1. The settings widget will appear at the bottom of the tool.

2. The background of an icon button turns dark gray to indicate it's settings are currently open.

How to close?

To close the settings page RMB ² click the active button again.

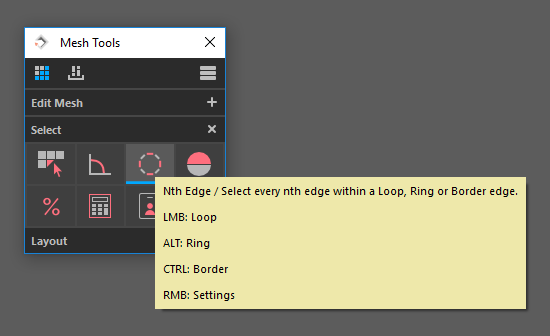

Tooltips

1. Hover over a button until a tooltip shows up.
2. Tooltips include information about available Modifier Alt Ctrl Shift and RMB ² settings options.

Please make sure that tooltips are enabled!

In Maya's main menu go to:

Windows > Settings / Preferences > Preferences > Interface > Help

and check DisplayToolClips under PopupHelp

Expand / Collapse tabs

It is possible to expand or collapse all tabs on an active page.

Expand

Ctrl   click on or

Collapse

Alt   click on or

Note

A settings page will automatically close when expand or collapse all tabs is used.

Keyboard Shortcuts

It is possible to control aspects of the tools interface with keyboard shortcuts.

Access pages

1   -   Edit Mesh Page

2   -   Import / Export Page

3   -   About Page

4   -   Toggle Tool Menu Visibility

Requirements

The tool needs to have focus, for the shortcuts to work.

Expand / collapse tabs

 Ctrl   +   1   to expand all tabs on the Edit Mesh Page

  Alt   +   1   to collapse all tabs on the Edit Mesh Page

 Ctrl   +   2   to expand all tabs on the Import / Export Page

  Alt   +   2   to collapse all tabs on the Import / Export Page

Attention

This only works on the currently active page.

Minimize to main menu

 Alt   +   4 to minimize the tool

About Page

Access the About page by clicking on

The page contains information about the tool, several web links and an option to set up hotkey shortcuts.

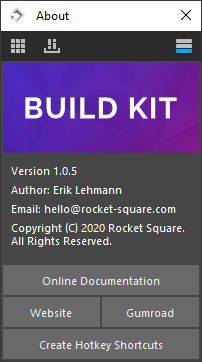

Interface - About Page

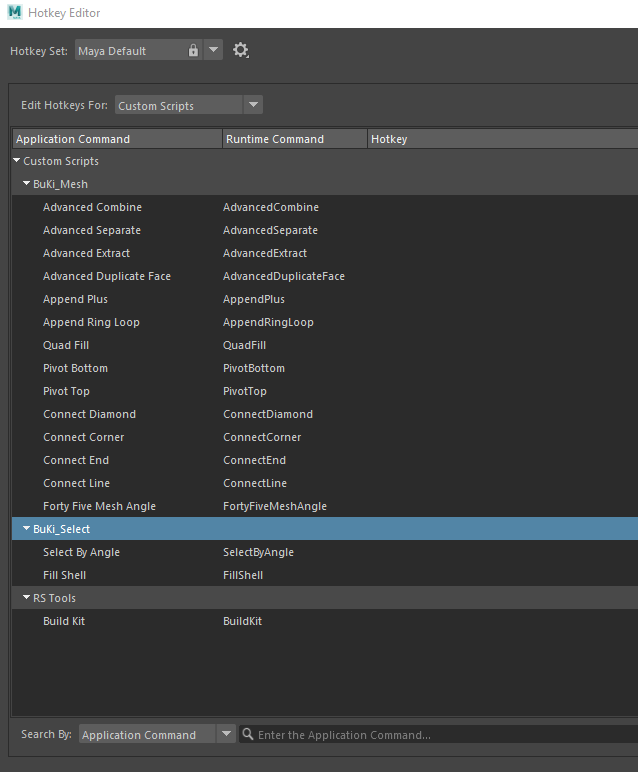

Create Hotkey Shortcuts

Click on the Create Hotkey Shortcuts button to make multiple functions available within Maya's hotkey editor.

Info

Access the Hotkey Editor under Windows > Settings/Preferences > Hotkey Editor

Edit Mesh

Interface - Edit Mesh

Extract

Advanced Extract operation

• Clean history (without empty groups)
• Keeps mesh name and adds an _Ext# suffix
• Remains under parent
• Centers pivot

How to use

1. Select one or multiple faces
2. Click on to run the script

Duplicate Face

Advanced Duplicate Face operation

• Clean history (without empty groups)
• Keeps mesh name and adds a _Dup# suffix
• Stays under current parent
• Centers pivot

How to use

1. Select one or multiple faces
2. Click on to run the script

Connect

Various options to connect components.

1. Connect Line

   How to use

   • Select 2 edges from a ring loop
   • LMB ¹ click on



2. Connect Diamond

   How to use

   • Select a triangle face
   • Alt click on



3. Connect Corner

   How to use

   • Select 2 corner edges from a quad polygon face
   • Ctrl click on



4. Connect End

   How to use

   • Select 3 edges from a quad polygon face
   • Shift click on



Append Plus

Enhanced poly append based on a vertex or edge input.

1. Append Poly

   How to use

   • Select one vertex in a corner of 2 edges
   • LMB ¹ click on



   Caution!

   When a face adjoins the newly created vertex that sits across from the selected vertex, the vertices won't be merged. Please use the Append Bridge operation to create a connecting poly face.



2. Append Bridge

   How to use

   • Select a border ring edge
   • LMB ¹ click on



3. Append Ring Loop

   How to use

   • Select two edges within a ring loop
   • Alt click on



Combine

Advanced Combine operation

• Clean history (without empty groups)

• Keeps the name of the first selected object

• Stays under current parent

• Option to keep the orientation of the first selected object (See RMB ² Settings)

• When combining a single group, it keeps the group name

How to use

1. Select 2 or more objects or 1 or more groups

2. Click on to run the script

Settings

Separate

Advanced Separate operation

• Clean history (without empty groups)

• Keeps mesh name and adds a _Sep# suffix

• Stays under current parent

• Centers pivots

How to use

1. Select 1 or more combined objects

2. Click on to run the script

Mirror

1. Mirror - World

   How to use

   • X-Axis:   LMB ¹ click on

   • Y-Axis:   Alt click on

   • Z-Axis:   Ctrl click on



   Automatic prefix renaming

   Objects / Groups that have L_ or R_ prefixes
   will automatically be renamed when mirrored in the X-Axis.

   Examples

   Groups



   Objects



2. Mirror - Pivot

   How to use

   • Add Shift to Mirror from the current Pivot position



Attention

None of these mirror operations will merge vertices.

Pivot Position

Set pivot positions based on an objects bounding box.

How to use

Add Shift for opposite directions

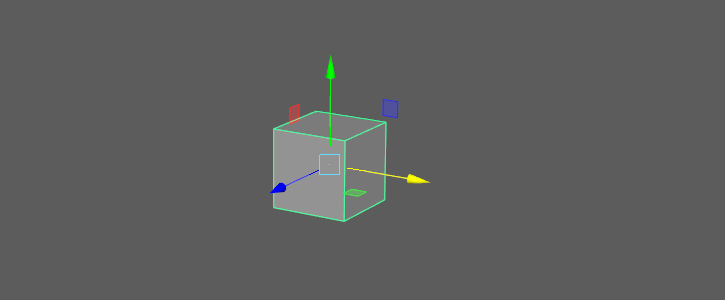

Bottom:   LMB ¹ click on

Top:   Shift + LMB ¹ click on

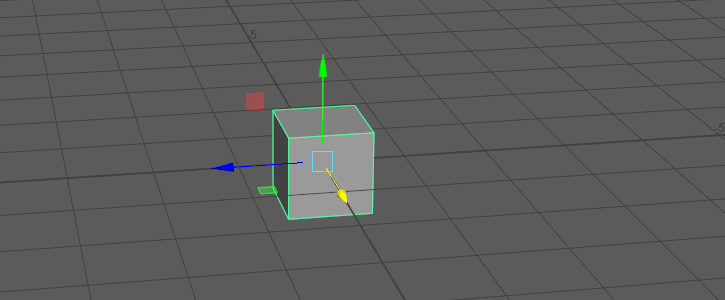

Front:   Alt click on

Back:   Shift + Alt click on

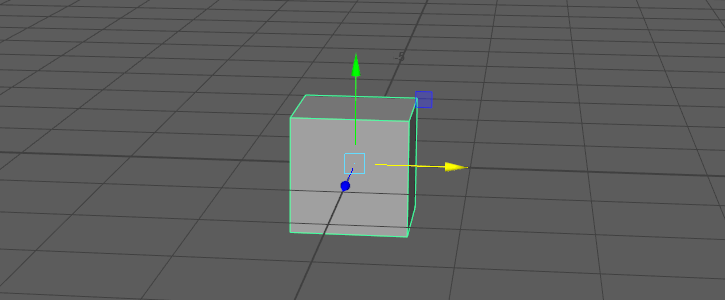

Right:   Ctrl click on

Left:   Shift + Ctrl click on

Center:   Shift + Alt + Ctrl click on

Groups

Group objects

• Group all or each object individually
• Automatically adds a "_grp" suffix

How to use

Add all objects to one group:   LMB ¹ click on

Add each object to an individual group:   Alt click on

Quad Fill

Automatically fills a grid polygon hole with an equal edge side count.

Requirements

1. Make sure that Track selection order is enabled"

2. Opposite sides need to have the same edge amount

How to use

Select the 4 corner edges in a "Z" shape order

LMB ¹ click on

Tip

If a mesh has curvature choose edges from the sides that best define the curvature

Examples

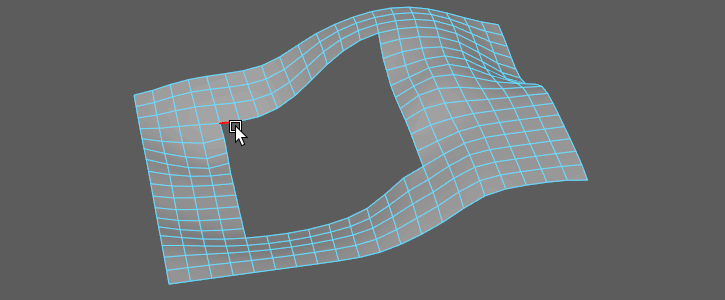

Plane area

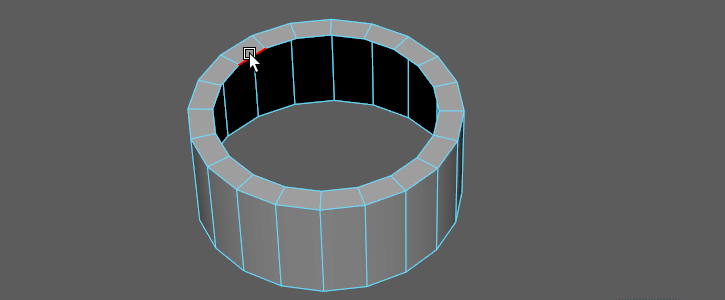

Cylinder cap

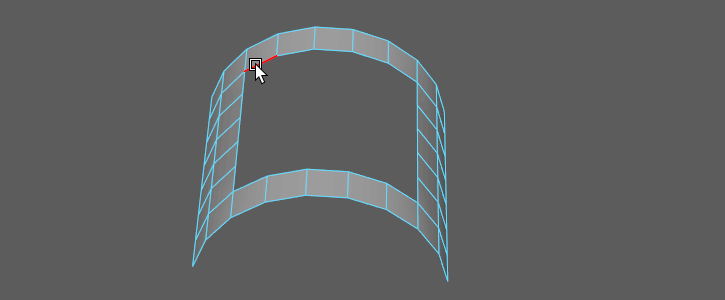

Cylinder side with curvature

45 Mesh Angle

Rotate a face selection by 45° from a specified anchor point.

How to use

1. Select one or multiple faces.
2. Switch to multi select mode. (Hold RMB ² and choose Multi)
3. Add 1 edge, which will be the anchor point.

4. LMB ¹ click on



5. Choose how to proceed in the option window.



   1. Accept: Proceeds with the result on display.
   2. Opposite: Rotates the face selection in the opposite direction.
   3. Undo: Returns to the original state.

Select

Interface - Select

Topology

Analyze a mesh and find invalid polygon geometry.

How to use

1. RMB ² click to open the settings widget.
2. Choose a geometry type from the settings page.
3. LMB ¹ click to run the script.

Tip

The **Poly Count** information and **Wireframe on shaded** mode are great for extra feedback.

Find the **Poly Count** display option under **Display > Heads Up Display > Poly Count**

or <kbd>Alt</kbd> click ![Screenshot](images/BuildKit/tool_icons/icon_select_topology.png) to **toggle the Poly Count** display.

Settings

• Triangles (polygon with 3 sides)
• Quads (polygon with 4 sides)
• N-Gons (polygons with more than 4 sides)
• Concave (a polygon with one or more interior angles greater than 180°)
• Lamina (faces sharing all edges)
• Holes
• Non-Manifold (geometry that cannot be unfolded)

Angle

Grow a polygon face selection based on a set edge normal angle.

How to use

1. RMB ² click to open the settings widget.
2. Set an angle value within the settings page.
3. LMB ¹ click to run the script.

Tip

Use the slider to interactively change the angle.

Settings

Attention

If used as a shortcut through the hotkey editor, the angle value is always 15°.

The angle value and the interactive slider can only be used with and within the tool.

Nth Edge

Selects every nth edge within a Loop, Ring or Border edge.

How to use

1. RMB ² click to open the settings widget.
2. Set a selection value.

3. Loop:   LMB ¹ click

   Ring:   Alt click

   Border:   Ctrl click

Settings

Fill Shell

Temporarily cut a mesh with an edge selection and select one or multiple of the resulting shells.

How to use

1. Make a loop or any closed edge selection
2. Click to start the process
3. Choose one or multiple shell(s)
4. Press Ok in the option window to end the process.

Percentage

Randomly selects a specified percentage from the current object selection.

How to use

1. Select multiple Objects
2. RMB ² click to open the settings widget.
3. Specify a percentage value
4. LMB ¹ click on to run the script

Settings

Component Count

Find objects that have the same component count as the selected source or specify a poly count range.

How to use

1. Choose a mode

   A. Based on a source object

   • Select an object (the source)

   B. Based on a value range

   • RMB ² click to open the settings widget
   • Switch On value mode
   • Set a poly count range
   • Specify the search scope

2. Choose a component type

   • Face - LMB ¹ click
   • Vertices - Alt click
   • Edges - Ctrl click
   • UVs - Shift click

Settings

Name

Search and select objects by name or characters.

How to use

1. RMB ² click to open the settings widget
2. Choose a search scope
3. Enter a name or characters into the text field
4. LMB ¹ click to run the script

Settings

Type

Search and select objects by type.

How to use

1. RMB ² click to open the settings widget
2. Choose a search scope
3. Select a type
4. LMB ¹ click to run the script

Settings

Layout

Interface - Layout

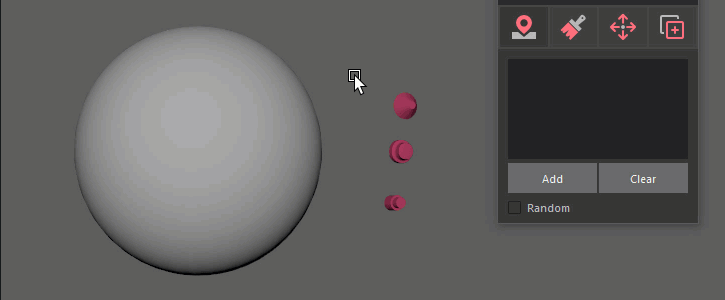

Place

Place source meshes on a target mesh, right under the mouse cursor location.

How to use

1. RMB ² click to open the settings widget
2. Add one or multiple objects to the list
   1. Use Del to remove items
   2. Click on Clear to empty the whole list

3. Select list items to make them available for placement



4. Check Random to place the objects in a random order

5. LMB ¹ click to run the script

Tip

Check the source objects Y-axis orientation and set a desired pivot location (the point where it gets placed on the target mesh) before adding it to the list.

Settings

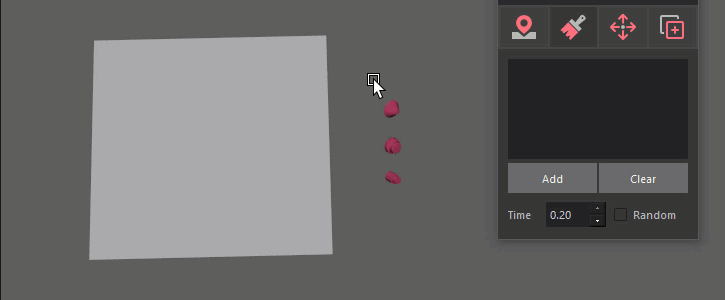

Paint

Paint source meshes on a target mesh.

How to use

1. RMB ² click to open the settings widget
2. Add one or multiple objects to the list
   1. Use Del to remove items
   2. Click on Clear to empty the whole list

3. Select list items to make them available for paint placement



4. Change the time value to control the paint density.
   Lower value (Min: 0.01) = faster placement.
   Higher value (Max: 0.20) = slower placement.

5. Check Random to place the objects in a random order
6. LMB ¹ click to run the script

Tip

Check the source objects Y-axis orientation and set a desired pivot location (the point where it gets placed on the target mesh) before adding it to the list.

Settings

Distribute

Distribute overlapping objects or groups based on their bounding box or a value.

How to use

1. RMB ² click to open the settings widget
   1. Select a distribution mode, based on their Bounding Box (BBox) or by Value
   2. Option to add Spacing between the objects
   3. Enter a Move value for Value mode
2. Select 2+ overlapping objects or groups
3. Choose an axis
   1. X-Axis   -   LMB ¹ click
   2. Y-Axis   -   Alt click
   3. Z-Axis   -   Ctrl click
   4. Add   Shift   for negative direction

Settings

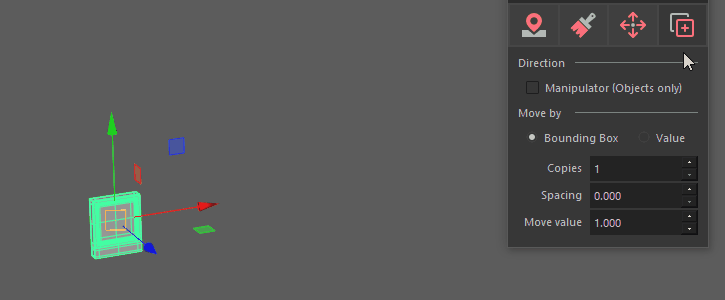

Duplicator

Distribute object or group duplicates based on their bounding box or a value.

How to use

1. RMB ² click to open the settings widget
   1. Option to duplicate in the objects Manipulator direction (Only works with objects)
   2. Select a duplicator mode, based on their Bounding Box or by Value
   3. Option to add Spacing between the objects
   4. Enter a Move value for Value mode
2. Select an object or a group
3. Choose an axis
   1. X-Axis   -   LMB ¹ click
   2. Y-Axis   -   Alt click
   3. Z-Axis   -   Ctrl click
   4. Add   Shift   for negative direction

Settings

Import / Export

Interface - Import / Export

Import

Import .obj files

Import .obj files as a combined mesh, separated meshes or as Blendshapes.

Load the objExport plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for objExport.mll
• Check Loaded and Auto load

How to use

1. RMB ² click to open the settings widget
   1. Choose an import mode
2. When the Import mode is set to As blendshapes, select a base mesh
3. LMB ¹ click to run the script
4. Navigate to the file location and select files to import

Settings

Import .fbx files

Load the fbxmaya plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for fbxmaya.mll
• Check Loaded and Auto load

How to use

1. LMB ¹ click to run the script
2. Navigate to the file location and select files to import

Import .abc files

Load the AbcImport plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for AbcImport.mll
• Check Loaded and Auto load

How to use

1. LMB ¹ click to run the script
2. Navigate to the file location and select files to import

Export

Export .obj files

Load the objExport plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for objExport.mll
• Check Loaded and Auto load

How to use

1. RMB ² click to open the settings widget
   1. Choose an export mode
   2. Set the preferred options to On or Off
2. Select objects to export
   1. When the Export mode is set to As blendshapes, select objects that have blendshapes
3. LMB ¹ click to run the script
4. Navigate to the save location
   1. When the Export mode is set to Combined, enter a file name

Settings

Export .fbx files

Load the fbxmaya plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for fbxmaya.mll
• Check Loaded and Auto load

How to use

1. RMB ² click to open the settings widget
   1. Choose an export mode
2. Select objects to export
3. LMB ¹ click to run the script
4. Navigate to the save location
   1. When the Export mode is set to Single file, enter a file name

Settings

Export .abc files

Load the AbcExport plugin

• Go to Windows > Settings/Preferences > Plug-in Manager
• Search for AbcExport.mll
• Check Loaded and Auto load

How to use

1. RMB ² click to open the settings widget
   1. Choose an export mode
   2. When objects are animated, set Start and End values for the time slider.
      When not, leave the default values.
2. Select objects to export
3. LMB ¹ click to run the script
4. Navigate to the save location
   1. When the Export mode is set to Single file, enter a file name

Settings

---

1. LMB - Left Mouse Button ↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩

2. RMB - Right Mouse Button ↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩↩
